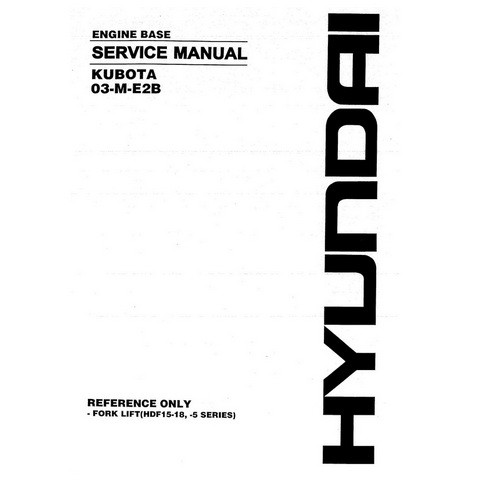

Kubota 03-M-E2B Engine Base Repair Service Manual

-
This complete service repair workshop manual PDF download for the Kubota 03-M-E2B Engine Base has easy to read text sections with top quality diagrams, pictures and illustrations. The step by step instructions show you how to fault find or complete any repair or overhaul, correctly and efficiently, saving time and avoiding costly mistakes. All specifications and tolerances are listed. Functions of components and systems are also explained.


APPLICABLE MODELS :

Kubota D1503-M
Kubota D1703-M
Kubota D1803-M

Kubota V2003-M
Kubota V2203-M
Kubota V2003-M-T
Kubota V2403-M

Hyundai Fork lift(HDF15·18, .5 Series)


TABLE OF CONTENTS :

CONTENTS (G)
1. ENGINE IDENTIFICATION
2. GENERAL PRECAUTION
3. MAINTENANCE CHECK LIST
4. CHECK AND MAINTENANCE
5. SPECIAL TOOLS

CONTENTS (M)
1. ENGINE BODY
2. COOLING SYSTEM
3. FUEL SYSTEM
4. ELECTRICAL SYSTEM
5. TURBOCHARGER SYSTEM

CONTENTS (S)
1. TROUBLESHOOTING
2. SERVICING SPECIFICATIONS
3. TIGHITENING TORQUES
4. CHECKING, DISASSEMBLING AND SERVICING


MANUAL SPECIFICATION :

File Format : PDF
Language : English
Printable : Yes
Searchable : Yes
Bookmarked : Yes
Total Pages : 126


This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism, service and maintenance of 03-M-E2B series. It is divided into three parts, "General", "Mechanism" and "Servicing".
• General
Information on the engine identification, the general precautions, maintenance check list, check and maintenance and special tools are described.
•Mechanism
Information on the construction and function are included. This part should be understood before proceeding with troubleshooting, disassembling and servicing.
Refer to Diesel Engine Mechanism Workshop Manual (Code No. 97897-01872) for the one which has not been described to this workshop manual.
• Servicing
Information ori the troubleshooting, serv1cmg specification lists, tightening torque, checking and adjusting, disassembling and assembling, and servicing which cover procedures, precautions, factory specifications and allowable limits.

Due to covering many models of this manual, information or picture being used have not been specified as one model.

This service repair workshop manual PDF download contains specs, diagrams, actual real photo illustrations, and schemes. In addition to space savings, nice thing about having completly searcheble PDF files instead of a hard-printed manual is that you can use the Search feature in your PDF reader software (Adobe Acrobat) to find just what your looking for and just print out the exact pages you need or all manual easily. This is the same Repair Service manual your local dealer will use when doing a repair.

All pages are printable, so run off what you need & take it with you into the garage or workshop. Save money $$ by doing your own repairs! These manuals make it easy for any skill level with these very easy to follow, step-by-step instructions! Instant download means no shipping cost or waiting for a CD to arrive in the mailyou will receive this manual today via instant download on completion of payment via our secure payment processor. We accept all major credit/debit cards/paypal.

-

TABLE OF CONTENTS :

CONTENTS (G)
1. ENGINE IDENTIFICATION
[1] MODEL NAME AND ENGINE SERIAL NUMBER
[2] E2B ENGINE
[3] CYLINDER NUMBER
2. GENERAL PRECAUTION
3. MAINTENANCE CHECK LIST
4. CHECK AND MAINTENANCE
[1] DIALY CHECK POINTS
[2] CHECK POINTS OF EVERY 50 HOURS
[3] CHECK POINTS OF EVERY 100 HOURS
[4] CHECK POINTS OF EVERY 150 HOURS
[5] CHECK POINTS OF EVERY 200 HOURS
[6] CHECK POINTS OF EVERY 300 HOURS
[7] CHECK POINTS OF EVERY 400 HOURS
[8] CHECK POINTS OF EVERY 500 HOURS
[9] CHECK POINTS OF EVERY 1 OR 2 MONTHS
[10] CHECK POINTS OF EVERY YEAR
[11] CHECK POINTS OF EVERY 800 HOURS
[12] CHECK POINTS OF EVERY 1500 HOURS
[13] CHECK POINTS OF EVERY 2YEARS
5. SPECIAL TOOLS

CONTENTS (M)
1. ENGINE BODY
[1] PISTON
[2] BUILT-IN DYNAMIC BALANCER (BALANCER MODEL ONLY)
[3] HALF-FLOATING HEAD COVER
2. COOLING SYSTEM
[1] BOTTOM BYPASS SYSTEM
3. FUEL SYSTEM
[1] GOVERNOR
4. ELECTRICAL SYSTEM
[1] STARTER AUTO REDUCTION UNIT
5. TURBOCHARGER SYSTEM
[1] BOOST COMPENSATOR

CONTENTS (S)
1. TROUBLESHOOTING
2. SERVICING SPECIFICATIONS
3. TIGHITENING TORQUES
[1] TIGHTENING TORQUES FOR GENERAL USE SCREWS, BOLT AND NUTS
[2] TIGHTENING TORQUES FOR SPECIAL USE SCREWS, BOLT AND NUTS
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
(1) Engine body
(2) Lubricating system
(3) Cooling system
(4) Fuel system
(5) Electrical system
(6) Turbocharger
[2] DIASSEMBLING AND ASSEMBLING
(1) Draining coolant and Oil
(2) External Components
(3) Cylinder Head and Valves
(4) Timing Gears, Camshaft and fuel Camshaft
(5) Piston and Connecting Rod
(6) Crankshaft
(7) Thermostat and Water Pump
(8) Starter
(9) Alternator
(10) Turbocharger
[3] SERVICING
(1) Cylinder Head and Valves
(2) Timing Gears, Camshaft and fuel Camshaft
(3) Piston and Connecting Rod
(4) Crankshaft
(5) Cylinder
(6) Oil Pump
(7) Starter
(8) Alternator
(9) Wiring Diagram

-
